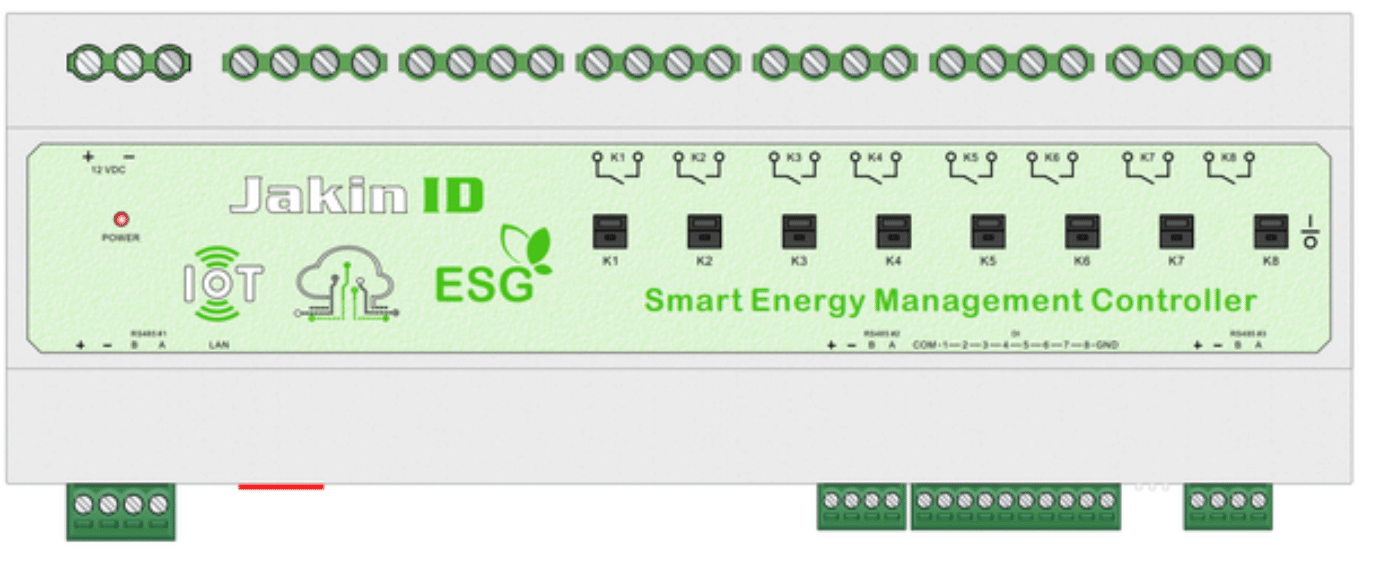

ACTA208      IoT Controller

Edge IoT Controller for smart access control and automation system.

Environmental Monitoring
Advanced sensors detect smoke, CO2 levels, and air quality, providing real-time data on the building’s environmental conditions.
Energy Management
HVAC Control& Optimization Electricity Monitoring & Management Lighting Management.
Occupancy Optimization

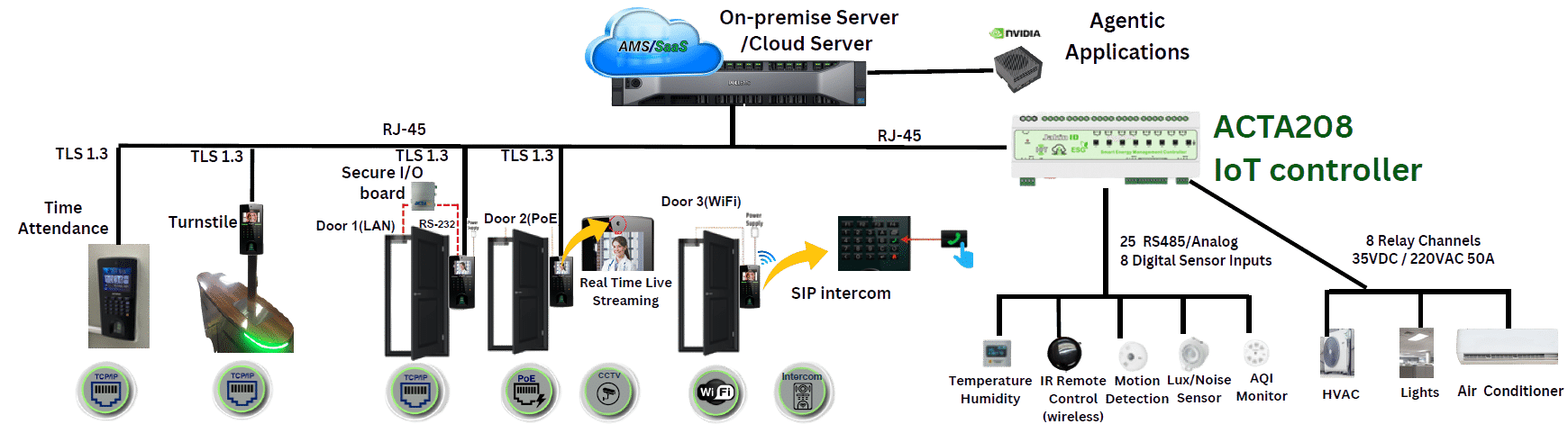

The system adjusts environmental settings using real-time occupancy data from ACTAtek devices, ensuring security, safety, health, and energy of both premises and people.

  • Capable of Switching 0-277VAC 50A Loads
  • Robust, Reliable and Durable Industrial Applications
  • Edge AI Architecture, Real-time Data Collection & Decision-Making
  • Fully functional even when the network fails
  • Support x33 RS485/Analog/Digital Sensor Inputs
  • Programmable IoT Automation and Scene
  • Standard DIN Rail Design for Easy Installation

Key Features
– 8 Channels, 35VDC / 220VAC 50A- Capable of switching 0-277VAC 50A loads
– High robustness for industrial applications
– Fully Functional Online or Offline
– Programmable IoT automation and scene control
– Standard DIN rail design for easy installation

Power Inputs
– 12VDC Inputs x2

Digital Inputs
– 8 Inputs, supporting dry and active contacts (0-36V)
– Controls multiple circuits based on digital input

Relay Outputs
– Normally Open, Pulse On/Off
– Time Delay On/Off, Sequential Switching

Max Power Capacity
– 0-35VDC 50A, 0-277VAC 50A (Resistive Load)

Network Interface
– 10/100 Mbps RJ45 Port x 1

Automation Features
– Triggers relays or scenes based on time of day, schedule and sensor detection- Supports multiple simultaneous scene actions
