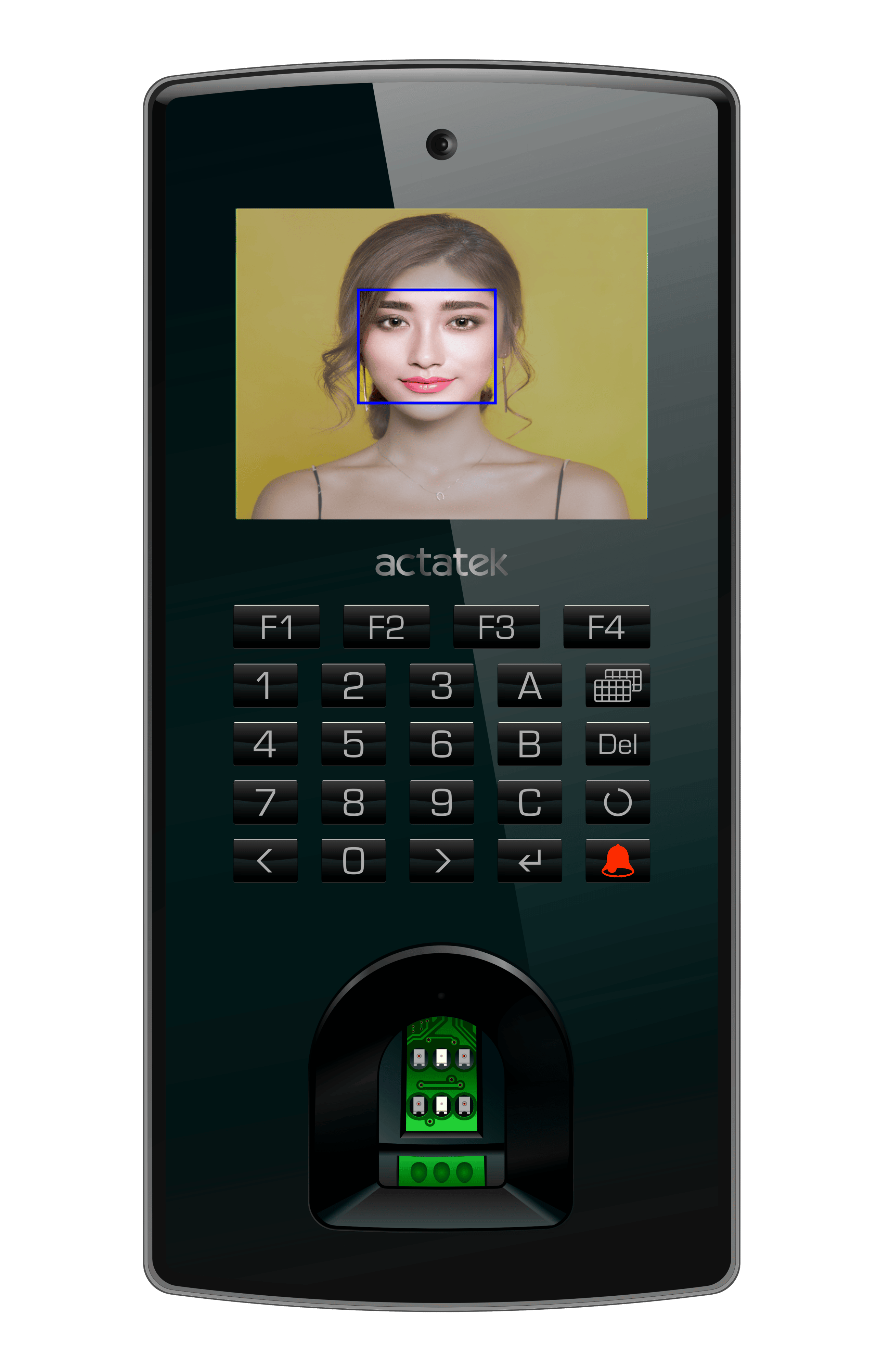

The biometrics unit comes with either fingerprint or facial recognition or both. One can also add the following built-in options: RFID reader, POE, WiFi, Barcode, QR code, CMOS camera, IP Intercom, GPS, and 3G module.

The device is encrypted with the latest encryption protocol, currently TLS1.3 with 256-bit encryption. All devices can be accessed and controlled using any web browser just like Internet banking!

  • Embedded Web server for easy access via any browser
  • Encrypted network communication (TLS1.3 with 256-bit encryption)
  • Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
The fingerprint sensor is made of vandal-proof hardened crown glass with 500dpi resolution. With facial recognition, a picture of the user is also taken as part of the event log.

Both fingerprint and facial recognition have optional live detection. It can support a maximum of 250,000 users and a maximum of 10 million event logs (depending upon the model).

Improve your business security and efficiency with the ACTA series of Biometrics, RFID, and IoT solutions: the best option for your offices and facilities. Improve your business security and efficiency with the ACTA series of Biometrics, RFID, and IoT solutions: the best option for your offices and facilities.

User-friendly, just like Internet banking, use any web browser on your PC, laptop, and mobile phone to access and manage all the applications. It is technology-proof with users, features and functions upgrade via software patches.

The device is protected by the latest TLS 1.3 256-bit encryption and continuous upgrade to protect your network. With optional PoE built-in, just a single CAT5-6 cable can deliver all the needs for the device as well as to the door strike. Coupled with online maintenance giving you tremendous savings on cabling costs, remote on-site maintenance, and travel expenses!

Easy to scale: you can install one today and thousands of units tomorrow! Simply plug and play on your network. The IP65 rating allows all-weather installations.

Following built-in options are available:

  • IP Intercom: allows communications with any visitors at the door
  • Wi-Fi -GSM/3G module for remote and mobile Internet connections (Q2 2019)
  • GPS for tracking of the device (Q2 2019)
Model: Facial Fingerprint Smartcard Fingerprint + Smartcard Keypad
Fingerprint Enrollment Optional Optional Optional
Built-in smartcard reader Optional Optional Optional
Face enrollment with video camera Optional Optional Optional Optional
Live detection Optional for Fingerprint & Facial Recognition
Built-in web and database server
Number of users Basic 1,000 users can be upgrade to 100,000+
Max. transaction records stored
(*depending on the model, on request only)		 1,000,000 logs/20,000 images
Static IP address assignment
Dynamic IP address assignment
Power Over Ethernet (Built-in) Optional(IEEE 802.3af standards)
Resolution of LCD 2.8″ 64K/256K Color TFT Screen 320 x 240 Pixel Resolution
Non-volatile memory 4 GB
Computer OS support (with Internet browser)
Mac OS Android
Windows OS Linux PC
iPhone OS
Unix Machine
Valid characters of employee ID 0-9, A-C (max. 16 characters)
Programmable function keys support F1, F2, F3, F4
Authentication time < 1 second
FingerPrint Users capacity 250,000(1:1)/20,000(1:N)
Face Users capacity 50,000(1:1)/50,000(1:N)
Alert By Email and SMS, LCD Message Displayed
Database interface support ODBC/JDBC
Encryption AES 256-Bit (Continuous Upgrade)
Multi-lingual support Basic 1,000 users can be upgrade to 100,000+
Network interface (Built-in) – 1,000 Base T Ethernet (Built-in)/SNMP support
– WiFi IEEE 802.11 a/b/g/n/ac with 2.4G/5G
I/O Interface – RS-232/RS-485
– Wiegand output (26bit)
– Power to strike, 12V DC at Max 500mA
Export Report CSV/Text file
Remote Control
Operation Temperature -20 Degree C to 60 Degree C
Modules CPU/Fingerprint
Mifare/Desfire
HID Proximity
HID iClass/FeliCa
EM
CEPAS Card(Singapore)
CMOS/Video camera(Optional)		 RFID Card
13.56 MHz
ISO14443A/B
ISO15693
125kHz
13.56MHz
Colour LCD & Keypad		 POE
WiFi
GSM/3G
Modes of Authentication Fingerprint, Facial, Smartcard, PINID + Fingerprint, Facial + Fingerprint
Smartcard + Fingerprint, Smartcard + FacialSmartcard + PIN
Mobile Optional Mobile Battery
Relay/Doorbell Support 1 Relay/1 Doorbell
IP Intercom (Built-in) Optional (SIP-enabled VoIP Intercom)
GPS/GSM/3G Module (Built-in) Optional
Standards (FingerPrint/Facial) FingerPrint: ISO 19794-2 template, ANSI/INCITS 378 template MINEX III PIV Level 2 Compliant, FBI Certified WSQ, STQC, ISO 19794-4 image
Facial: Facial quailty: ISO/IEC 19794-5-2006, Image(FFI):ISO/IEC 19794-5
Safety standard/Casing CE, FCC
IP65-Fluid Ingress, Dust, Salt, Fog Protection
Software Support Agent2 (Standalone Mode) / Access Manager Suite** (Client-Server Mode)
** Access Manager Suite
Software Requirements

  • Windows 10 or Sever 2012 above version
  • Microsoft SQL Server for Database Server, SQL Server 2008 or above version
  • Microsoft .NET 3.5 Runtime
 Hardware Requirements

  • CPU: Intel Core 2 Duo 2.6 GHz or Higher
  • Memory: 4 GB
  • Storage: 20 GB Free
  • Ethernet: 100 Base-T
(Note: Access Manager – SOAP/API will be provided for 3rd party integration
ACTA series IoT devices – Options for additional functionality

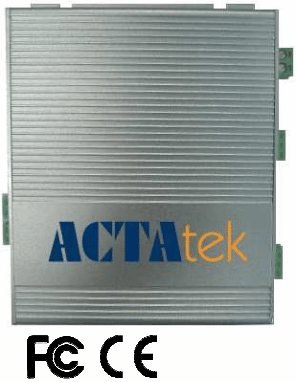

External I/O board: can be installed/hidden inside the secure premises ensuring no direct access to door strike connections.
Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability.
Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications.
3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway.

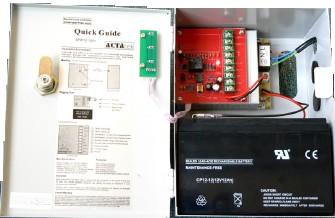

UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages.
